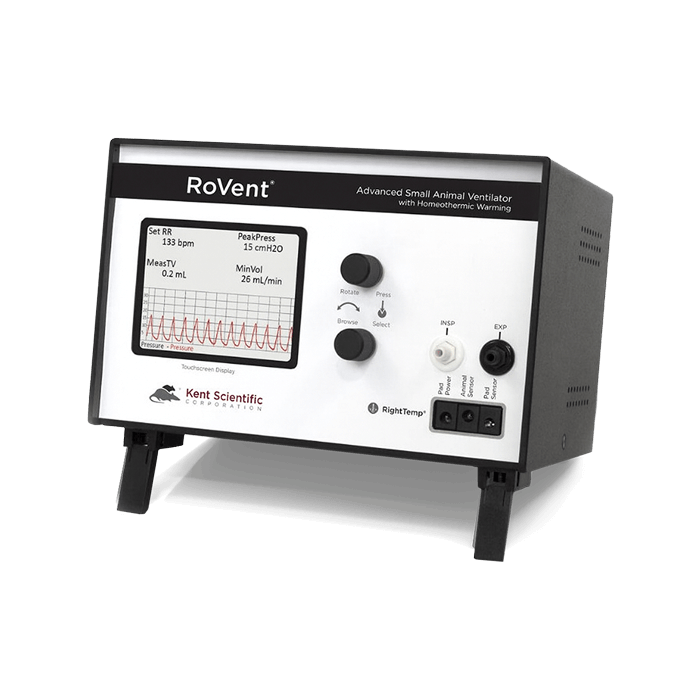

The RoVent Automatic Ventilator for mice and rats allows you to enter the animal's weight as it automatically sets the respiratory rate and tidal volume, making it an ideal option for in-vivo COVID-19 research.
Buy NowAll RoVent® base systems include the following modules:
|
Automatic Ventilator Module
RoVent® Module
|
|---|
| Control Modes | Volume Controlled, Pressure Controlled |
| I:E Ratio | 1:1 to 1:5 |
| Sigh Pressure | 2 to 30 cmH20 |
| Respiratory Rate Range | 20 to 350 bpm |
| Max Inspiratory Flow | 1.5 SLPM |
| Weight Range | 3g to 1,250g |
| Multi-Animal Capability* | Yes |
| *Our clinical department will be pleased to review your study protocol to confirm that our product will meet your specific study requirements. | |
|
Temperature Monitoring & Homeothermic Control Module
RightTemp®
|
|---|
| Resistance | 2252 ohm |
| Tolerance | +/– 0.2° C |
| Accuracy | 25°C to 45°C |
| Operating Temp. | –40°C to 80° C |
| Sensor Diameter | Ball Tip Diameter: 1.65 mm max Shaft: 1.5 mm |
| Time Constant | 10.0 seconds |
| Dissipation Constant | 0.75 m/W (° C) |
| RoVent® Jr. | RoVent® | SomnoSuite® with RoVent® Module | |
|---|---|---|---|
| Volume ventilation | Yes | Yes | Yes |
| Pressure ventilation | Yes | Yes | Yes |
| Pulse ventilation mode | No | Yes | Yes |
| PEEP | No | Yes | Yes |
| Assist mode | No | Yes | Yes |
| Sigh breath | No | Yes | Yes |
| I:E ratio | Yes | Yes | Yes |
| Tidal volume — measured | Yes | Yes | Yes |
| Auto set-up | Limited | Yes | Yes |
| User profiles | No | Yes | Yes |
| Alarms (parameter) | No | Yes | Yes |
| Trigger in | No | Yes | Yes |
| Analog out | No | Yes | Yes |
| Digital out | No | Yes | Yes |
| Sync out | No | Yes | Yes |
| ADI integration | No | Yes | Yes |
| Data output | No | Yes | Yes |
| Internal data logging | No | Yes | Yes |
| Realtime clock | No | Yes | Yes |
| Temperature monitor and homeothermic control module | No | Yes, RightTemp included | Yes, RightTemp included |
