SurgiSuite Multi-Function Surgical Platform

Specifications

	SurgiSuite Standard	SurgiSuite Large
Base Dimensions:	12.90" x 16.80" (32.77 cm x 42.67 cm)	15.75" x 17.80" (40.01 cm x 45.21 cm)
Stainless Steel Area:	11.90" x 7.90" (30.23 cm x 20.07 cm)	12.75" x 10.75" (32.39 cm x 27.31 cm)
Warming Surface Area:	6.6" x 5" (16.51 cm x 12.7 cm)	8.75" x 6.75" (22.23 cm x 17.15 cm)

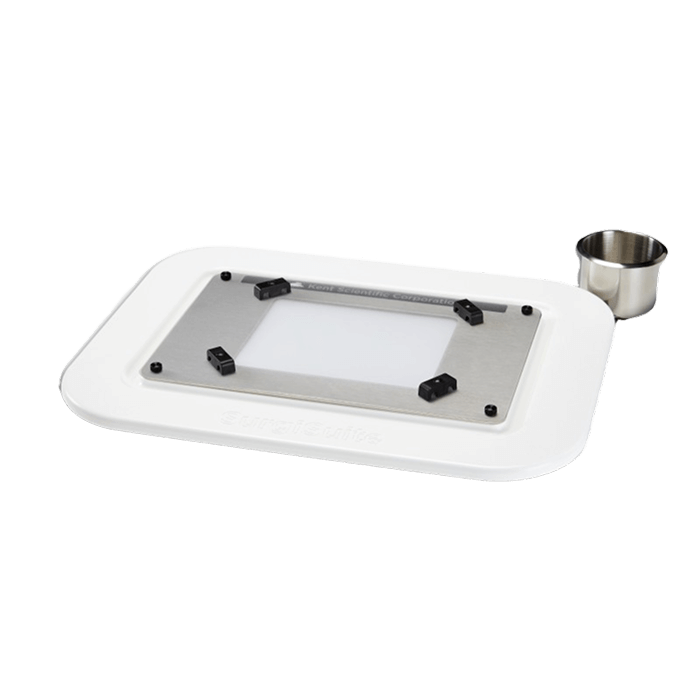

System Includes

• Easy to clean, chemical-resistant base
• Stainless steel surgical surface
• Integrated, rechargeable far infrared warming pad
• 2 magnetic anesthesia mask/intubation tubing stabilizers (1 small and 1 large)
• Magnetic limb positioners (4-pack with elastic wires)
• Elastic wire positioner (1 meter)
• Detachable procedure bowl
• Disposable surgical field covers (5-pack)

Optional Add-Ons

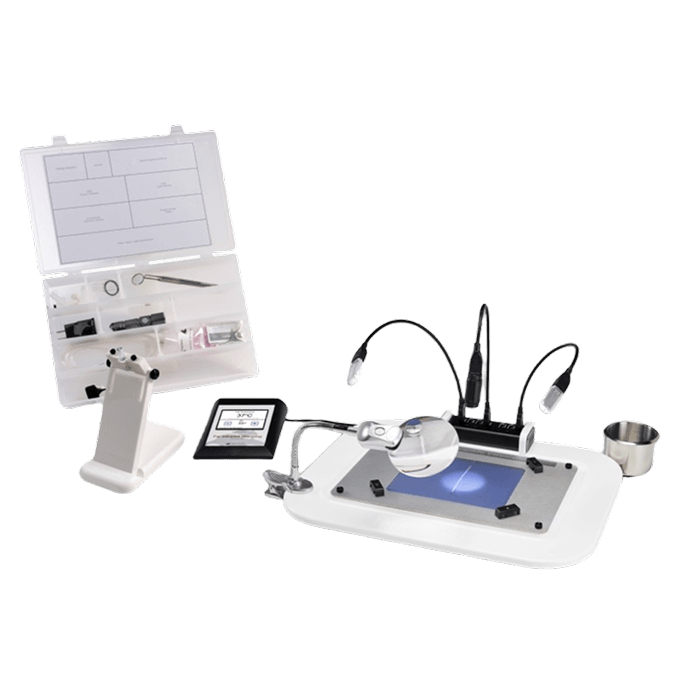

• Easily connect a mouse or rat Intubation Kit with your SurgiSuite.

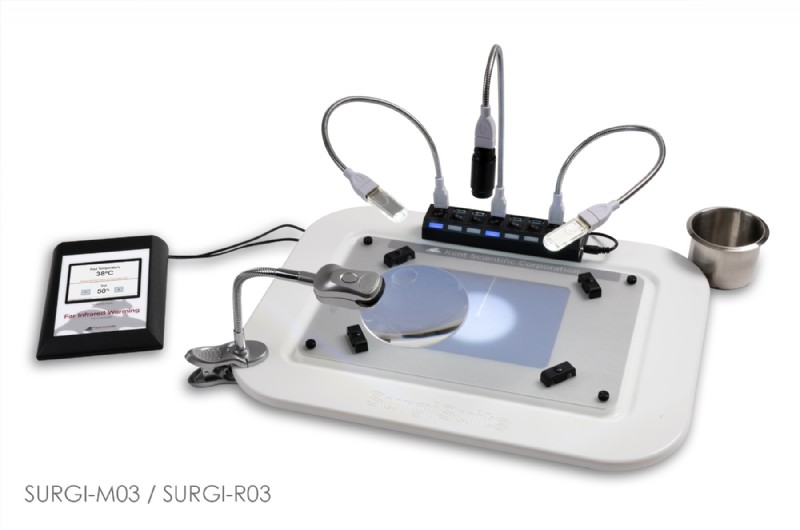

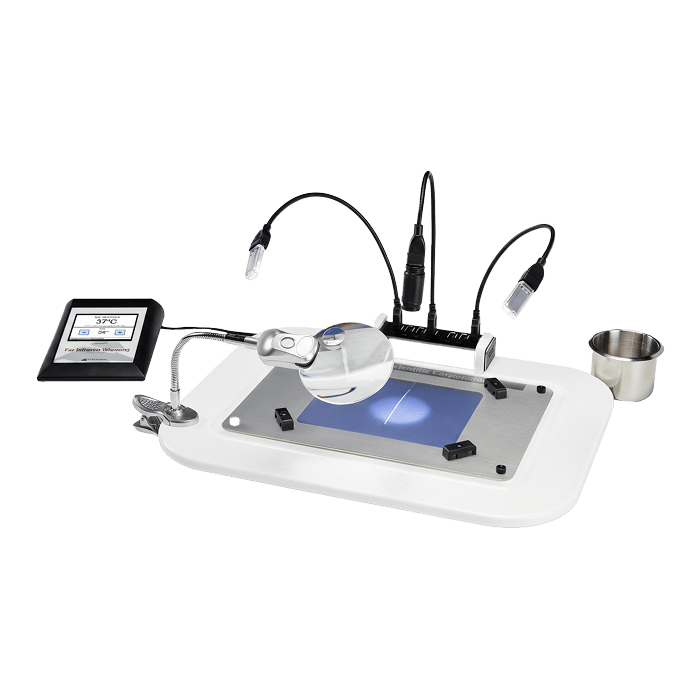

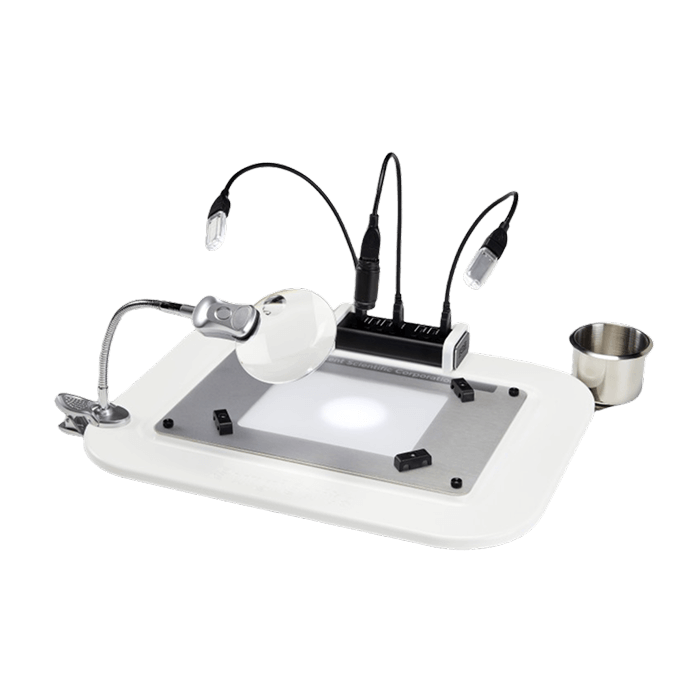

• Our optional LED Lighting Kit includes 3 flexible LED lights and a USB power strip. Lighting plugs directly into the USB power strip (the USB strip must be connected to a power outlet). You can plug in up to 7 USB devices, each with its own on/off switch.
• The optional clip-on magnifier can be placed on any side of the surgical board, customized to your surgical set-up.

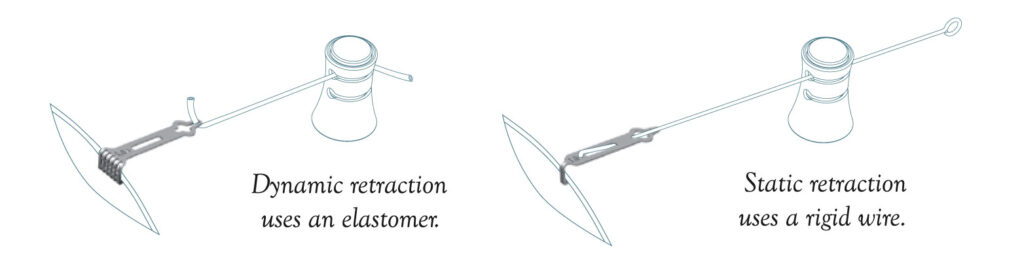

• Optional retractor wires and retractor tips provide maximum control with minimum clutter. Retractor wires lock into fixators to allow both linear and rotational adjustment over the entire length of the wire. Tips can be locked onto a wire for static retraction, or affixed to an elastic wire to form a dynamic retractor.

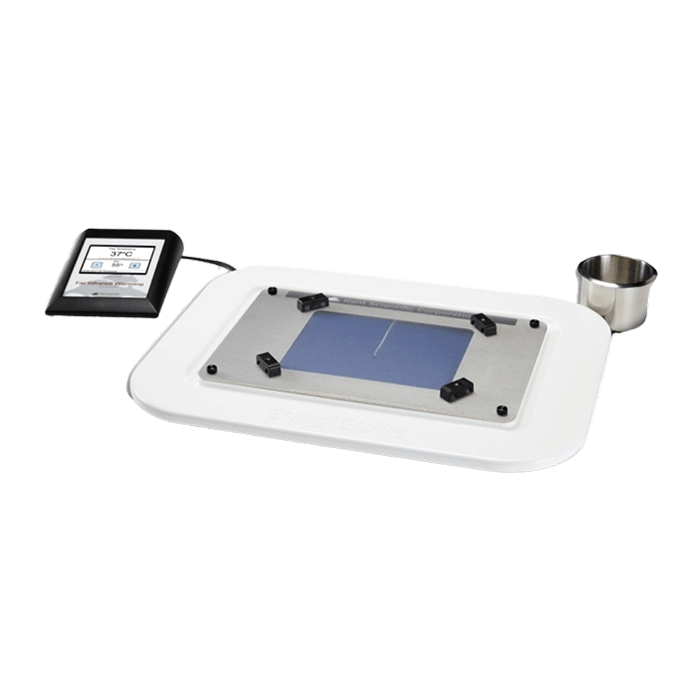

• If you would like to monitor and regulate the animal temperature, the PhysioSuite® with RightTemp® temperature monitoring and homeothermic control is available and easily connects to the warming pad included with the platform.

Warming Settings

Warming is easily controlled by selecting up to 5 settings.

Setting	Temperature	Operating Time
Level 1	20°C (68°F)	7 hours
Level 2	25°C (77°F)	6 hours
Level 3	30°C (86°F)	5 hours
Level 4	35°C (95°F)	4 hours
Level 5	40°C (104°F)	3 hours

Features

• All platforms include integrated warming by using a rechargeable, battery-operated far infrared warming pad
• The warming pad sits below the surface (recessed in the center) to allow for a level surgical field
• The surgical area is surrounded by a ferro-magnetic stainless steel plate, incorporating a window to allow for warming of the animal during a surgical procedure
• Battery operation provides added mobility to the surgical platform
• The surgical field and warming pad are protected by a plastic cover
• The procedure bowl included with each platform can be used for quick access to gauze, cotton-tip applicators or to hold fluids; each corner can accommodate multiple bowls
• The included multi-positional stabilizers can be used to stabilize the animal or anesthesia tubing connected to your nose cone or tracheal tube inspiratory and expiratory lines
