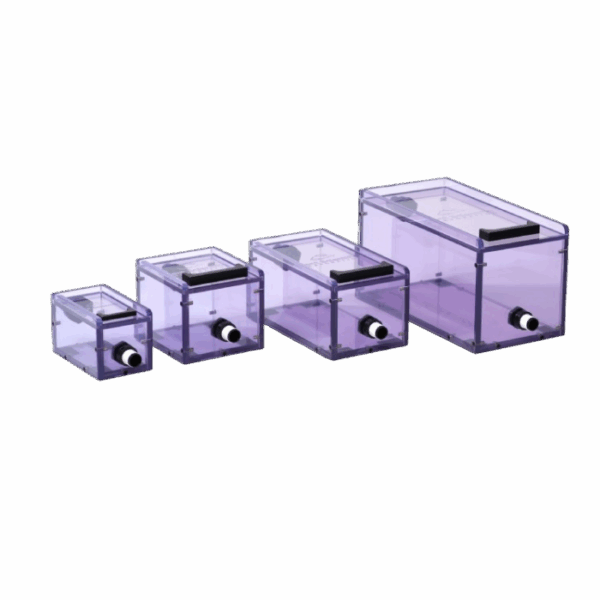

Sliding Top Chambers
For the SomnoSuite® and SomnoFlo® anesthesia systems
The Sliding Top Chambers are for use with passive waste anesthesia gas management systems and feature positive sliding tops that make them leak proof when in use.
Tubing and adapters included. The fresh and waste anesthetic gas inlet and outlet adapters are industry standard 15 mm i.d. x 19 mm o.d., standard 19 mm EVAC tubing will fit with either adapter. Tubing is 32″ long.
Need Help? Chat with an Expert
What you get on day one
How to clean
-
Clean with disinfectant cleaner and deodorizer concentrate formulated with AHP®
(Accelerated Hydrogen Peroxide) - Can be cleaned with alcohol and other harsh disinfectants
- Can be gas sterilized with ethylene oxide
Base system includes
| 0.5L inner dimensions: | 2.5 in W x 2.375 in H x 4.75 in D (6.35 cm W x 6.0325 cm H x 12.065 cm D) |
| 1.25L inner dimensions: | 4.25 in W x 4.25 in H x 4.25 in D (10.795 cm W x 10.795 cm H x 10.795 cm D) |
| 3L inner dimensions: | 4.25 in W x 4.5 in H x 9.25 in D (10.795 cm W x 11.43 cm H x 23.495 cm D) |
| 5.4L inner dimensions: | 5.5 in W x 5.4375 in H x 11.5 in D (13.97 cm W x 13.81125 cm H x 29.21 cm D) |
